Rotary Tube Furnace / 1200℃, China Rotary Tube Furnace / 1200℃ Manufacturers, Suppliers, Factory -Nanjing Chishun Technology Development Co.,Ltd.

Model.	TF1200
Rated temperature	1200℃
Working temperature	1100℃
Heating zone size	300mm
Heating element	HRE Alloy resistance wire
Furnace material	Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration molding
Tube material	Quartz tube
Control accuracy	±1℃
Temperature measuring element	K type thermocouple

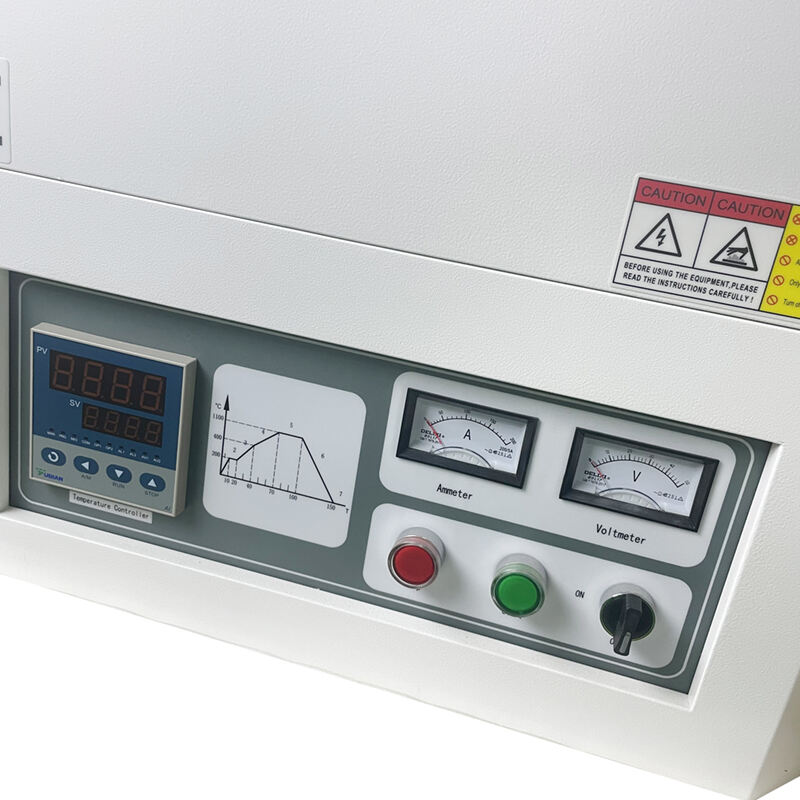

Control instrument	Intelligent microcomputer PID temperature control instrument SCR/SSR control PID parameter self-tuning function Programmable for 30 time periods Program heating, cooling, and insulation
Heating rate	1-15℃/min
Furnace structure	Integrated structure of furnace temperature control Furnace opening and closing type Double layered shell, air circulation insulation
Sealing performance	Both ends of the furnace tube are equipped with stainless steel metal flanges and high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤ 5pa (rotary vane vacuum pump)
Atmosphere performance	There are inlet and outlet ports at both ends of the flange. The pressure gauge is installed on a metal flange, and the precision needle valve can adjust the intake and exhaust volume, allowing for the passage of protective gases such as nitrogen, argon, and hydrogen
Operation safety device	Modular control, which will emit sound and light alarm signals for over temperature and disconnection during the working process, and automatically complete protection actions
Personal safety device	There is an air circuit breaker installed on the equipment, which will automatically pop open in case of short circuit or leakage, which can protect the equipment and operators
Standard configuration	Furnace1; Temperature controller1; Power cord(3m)* 1; Thermocouple1; Instruction manual1; Hook1; Gloves1 pair; Plugs 2; Sealing flanges1
Optional accessories	Triple air circuit control cabinet Quartz container Rotary vane vacuum pump
